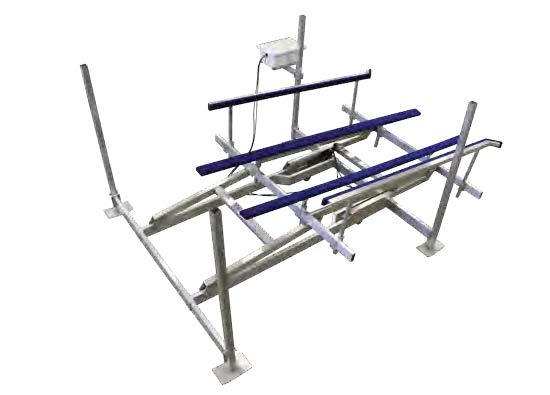

ShoreMaster Hydraulic Boat Lift

The ShoreMaster hydraulic boat lift represents the most advanced technology available. Its quick, quiet operation will lift your boat out of the water in seconds. With the optional keychain remote, it’s as easy as pushing a button.

An attractive cedar control box houses the hydraulic pump and a 12-volt battery. With 12 volt power there is no need to have expensive power run to your dock; just use the reliable solar panel to keep your battery fully charged. If 110V power is available, an AC charger can be used as a standalone unit. ShoreMaster uses marine proven chrome-plated heavy-duty hydraulic rams to provide fast and quiet operation while adding stability to the lift insuring safe moorage of your boat.

  • The hydraulic cylinders are filled with a biodegradable, environmentally friendly oil.
  • Solar Panels are used to keep the battery fully charged.
  • Handy locking mechanism protects your boat while you’re away.
  • 2 and 10 Year Limited Warranty
  Hydraulic Boat Lift Specifications
  Model

Capacity

Max Beam

Lift Height

Overall
Width

Lift
Weight

  30948 3000 lb 108″ 48″ 120″ 425 lbs
  30960 3000 lb 108″ 60″ 120″ 425 lbs
  31048 3000 lb 120″ 48″ 132″ 430 lbs
  31060 3000 lb 120″ 60″ 132″ 430 lbs
  40948 4000 lb 108″ 48″ 120″ 450 lbs
  40960 4000 lb 108″ 60″ 120″ 450 lbs
  41048 4000 lb 120″ 48″ 132″ 475 lbs
  41060 4000 lb 120″ 60″ 132″ 475 lbs
  60948 6000 lb 108″ 48″ 120″ 485 lbs
  60960 6000 lb 108″ 60″ 120″ 485 lbs
  61048 6000 lb 120″ 48″ 132″ 500 lbs
  61060 6000 lb 120″ 60″ 132″ 500 lbs
  81148 8000 lb 132″ 48″ 144″ 900 lbs
  81160 8000 lb 132″ 60″ 144″ 900 lbs
  101160 10000 lb 132″ 60″ 144″ 1300 lbs
  121160 12000 lb 132″ 60″ 144″ 1600 lbs
   Models and specifications are subject to change.

* Available Accessories – Solar Panel, Canopy, Loft, Key FOB Remotes, Load Guides, Motor Stop, Wheel caddies and brackets, (Canopy Colors – Blue, Green, White, Burgundy, Tan and Gray. Special ordered colors available.)

ShoreMaster Manual Boat Lift

ShoreMaster manual vertical boat lifts are designed for shallow waters, highly fluctuating waters and rough waters where you need to get your boat high out of the water.

  • Only 18″ of water clearance is needed.
  • Most models have a lifting height of 66 inches,the highest in the industry.
  • The v-side design allows for easy access to your boat.
  • 2 and 10 Year Limited Warranty
  Manual Boat Lift Specifications
  Model

Capacity

Max Beam

Lift Height

Overall
Width

Lift
Weight

  1264 1200 lb 64″ 50″ 72″ 165 lbs
  20855 SR 2000 lb 96″ 55″ 108″ 290 lbs
  30966 DVS 3000 lb 108″ 66″ 120″ 360 lbs
  301066 DVS 3000 lb 120″ 66″ 132″ 370 lbs
  40966 DVS 4000 lb 108″ 66″ 120″ 395 lbs
  401066 DVS 4000 lb 120″ 66″ 132″ 425 lbs
  501066 SR 5000 lb 120″ 66″ 132″ 525 lbs
  701066 SR 7000 lb 120″ 66″ 134″ 695 lbs
  SR – Straight Rack DVS – Double V Side
Models and specifications are subject to change.

* Available Accessories – Canopy, Loft, Power Units, Load Guides, Motor Stop, Wheel caddies and brackets, (Canopy Colors – Blue, Green, White, Burgundy, Tan and Gray. Special ordered colors available.)

ShoreMaster Canopy Colors

Actual colors may vary some depending on your monitor.

ShoreMaster Boat Lift Warranty

15 Year Limited Warranty on aluminum structure and welds.
2 Year Limited Warranty on components.
5 Year Limited Warranty on ShoreMaster canopy vinyl, prorated.

ShoreMaster’s warranty is limited to products purchased new by the original owner and is not transferable. ShoreMaster will at its option repair or replace, without charge, or allow credit for any such goods found on examination by ShoreMaster to be defective under normal use and service. The buyer’s remedies with respect to defective goods shall be exclusively limited as above provided and in no event shall the seller be liable for incidental or consequential damages of any nature. All other warranties, including but not limited to warranties of merchantability and fitness for a particular purpose are expressly disclaimed. ShoreMaster’s warranty does not cover damage caused by circumstances outside the reasonable control of ShoreMaster, including be not limited to, improper use, installation, overloading, accident, neglect or harmful alterations or repairs made by others, damage by snow or ice, electrolysis, corrosion, natural expansion or contraction of deck surfaces caused by weather conditions, severe weather conditions or Acts of God.
