ShoreStation Hydraulic Boat Lift

With more than 45 years of Boat Lift experience , the ShoreStation name speaks for itself. The aluminum ShoreStation boat lift lineup is more complete and advanced than ever before! From the smallest – for 800lb fishing boats, to the largest – for 6000lb cruisers, you will get years of convenient, dependable operation from a ShoreStation boat lift.

The hydraulic system is available in either DC or AC, allowing you to power it from an auxiliary battery, boat battery or from an AC power source. They even offer an optional Battery Holding Bracket for convenience.

  • Hydraulic System is positioned above the waterline and away from the dock for safety and easy access to the boat.
  • Specially Designed “V” Shaped Platform for Shallow water application.
  • NEW Ultrabunks are maintenance-free, hassle free aluminum and polyvinyl alternative to traditional wood bunks.
  • 2 and 10 Year Limited Warranty
  Hydraulic Boat Lift Specifications
  Model

Capacity

Max Beam

Lift Height

Overall
Width

Lift
Weight

  ssv40120 H 4000 lb 108″ 48″ 10’4″ 835 lbs
  ssv40108 H 4000 lb 120″ 48″ 11’4″ 845 lbs
  ssv60120 H 6000 lb 120″ 54″ 11’4″ 930 lbs
  ssv90132 H 9000 lb 132″ 66″ 12’10” 1308 lbs
  ssv150144 H 15,000 lb 144″ 72″ 12’9.5″ 2135 lbs
  Models and specifications are subject to change.

* Available Accessories – Canopy, Key FOB Remotes, Load Guides, Pontoon Conversion Kit, Bow Stop, Motor Stop, lift Corner Bumpers, Wheel Kit (Canopy Colors – Blue, Green, White, Tan and Gray. Special ordered colors available.)

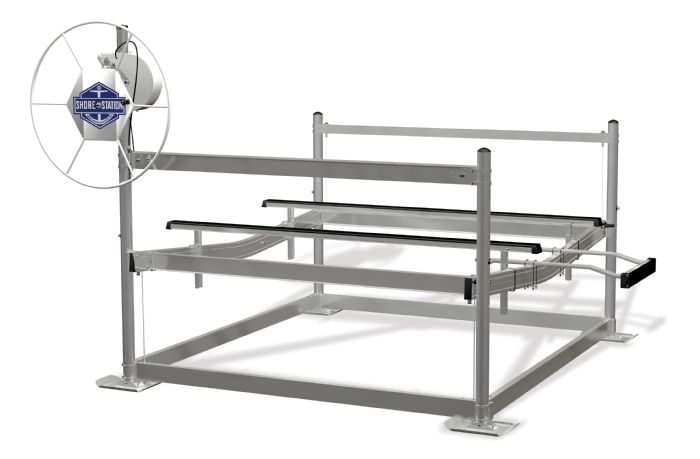

ShoreStation Manual Boat Lift

The ShoreStation line of manual aluminum lifts is more complete than ever before! From the smallest – for 1000lb fishing boats, to the largest – for 6000lb cruisers, you’ll get years of convenient dependable operation.

This year, ShoreStation has unveiled their new direct drive system – an innovative electric drive unit, with fully integrated motor and state-of-the-art push-button control. ShoreStation Direct Drive Lifts are available for craft from 1500 to 6000 pounds.

  • ShoreStation Time-Tested Winch
  • Specially Designed “V” Shaped Platform for Shallow water application.
  • NEW Ultrabunks are maintenance-free, hassle free aluminum and polyvinyl alternative to traditional wood bunks.
  • Aluminum and Galvanized Steel to provide long lasting durability and strength in critical areas.
  • 2 and 10 Year Limited Warranty
  Manual Boat Lift Specifications
  Model

Capacity

Max Beam

Lift Height

Adjust. Legs
Standard

Lift
Weight

  ssv1288 1200 lb 88″ 42″ 2-20″ 208 lbs
  ssv1288-4 1200 lb 88″ 42″ 4-20″ 208 lbs
  ssv15100 1500 lb 100″ 48″ 4-20″ 375 lbs
  ssv20100 2000 lb 100″ 48″ 4-20″ 385 lbs
  ssv30108 3000 lb 108″ 48″ 4-20″ 450 lbs
  ssv30120 3000 lb 120″ 48″ 4-20″ 470 lbs
  ssv40108 4000 lb 108″ 48″ 4-20″ 475 lbs
  ssv40120 4000 lb 120″ 48″ 4-20″ 510 lbs
  ssv60108 6000 lb 108″ 54″ 4-20″ 850 lbs
  ssv60120 6000 lb 120″ 54″ 4-20″ 850 lbs
  ssv60132 6000 lb 132″ 54″ 4-20″ 1070 lbs
  Steel Models

Capacity

Max Beam

Lift Height

Adjust. Legs Standard

lift
Weight

  ss36110 3600 lb 110″ 48″ 4-18″ 1045 lbs
  ssv45120 4500 lb 120″ 48″ 4-18″ 1200 lbs
  Models and specifications are subject to change.

* Available Accessories – Canopy, Direct Drive Power Unit, Load Guides, Pontoon Conversion Kit, Bow Stop, Hoist Corner Bumpers, Wheel Kit (Canopy Colors – Blue, Green, White, Tan and Gray. Special ordered colors available.)

ShoreStation Canopy Colors

Actual colors may vary some depending on your monitor.

ShoreStation Aluminum Boat Lift Warranty
2 year Basic Limited Warranty covers every Midwest supplied part with exceptions on your aluminum ShoreStation hoist. The Basic Warranty covers the cost of all parts and labor needed to repair any item on your aluminum Shore Station hoist that is defective in material, workmanship or factory preparation. You pay nothing for these repairs.
10 year Fabricated Frame and Extrusion Warranty covers frame and extrusion parts and components of your aluminum ShoreStation hoist frame for 10 years beginning at your hoist’s warranty start date.
1 year Warranty covers hydraulic components, electrical components, canopy covers, canopy frame, ShoreStation accessories and wood bunks.
To view the ShoreStation Warranty in full, click here.
ShoreStation Steel Boat Lift Warranty
2 year Basic Limited Warranty covers every Midwest supplied part with exceptions on your steel Shore Station hoist. The Basic Warranty covers the cost of all parts and labor needed to repair any item on your steel ShoreStation hoist that is defective in material, workmanship or factory preparation. You pay nothing for these repairs.
10 year Fabricated Steel Frame Warranty covers parts and components of your steel ShoreStation hoist frame for 10 years beginning at your hoist’s warranty start date.
1 year Warranty covers electrical components, canopy covers, canopy frame, ShoreStation accessories and wood bunks.
To view the ShoreStation Warranty in full, click here.
